AVIONICS INSTALLATIONS

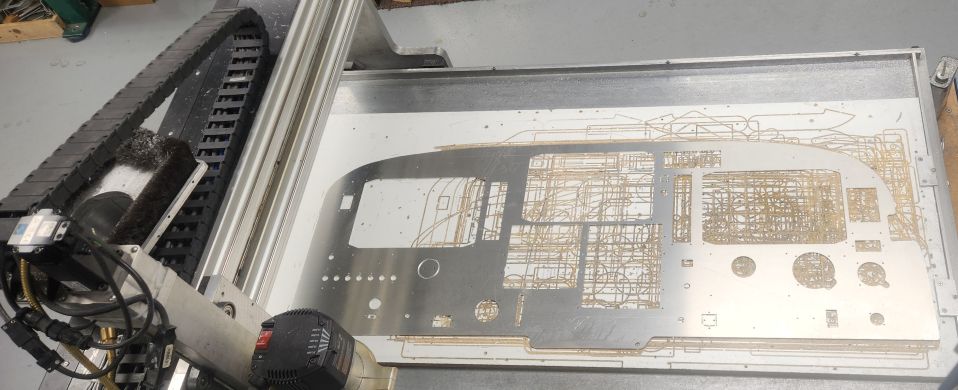

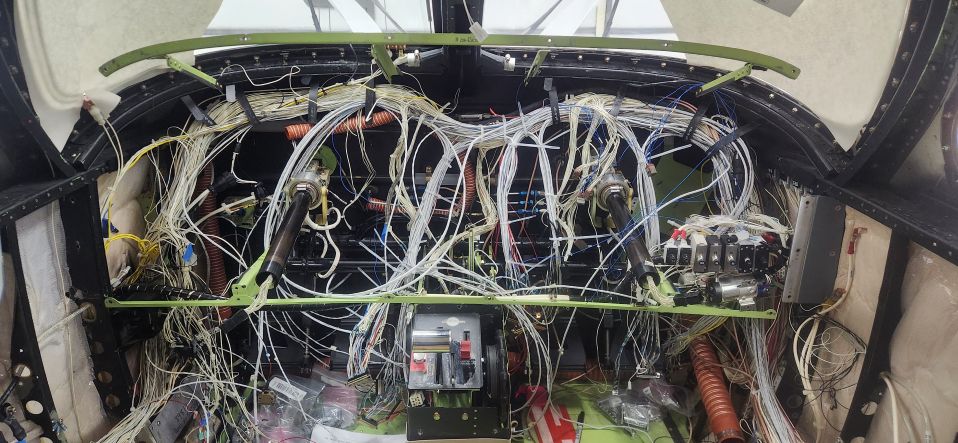

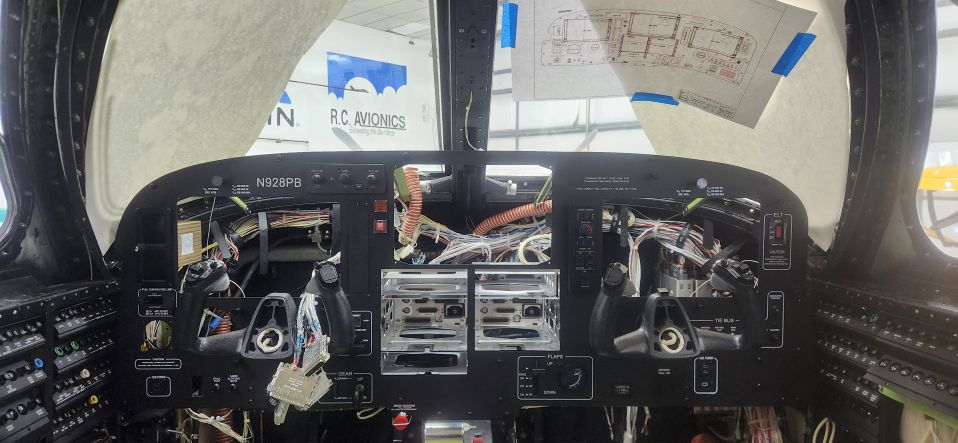

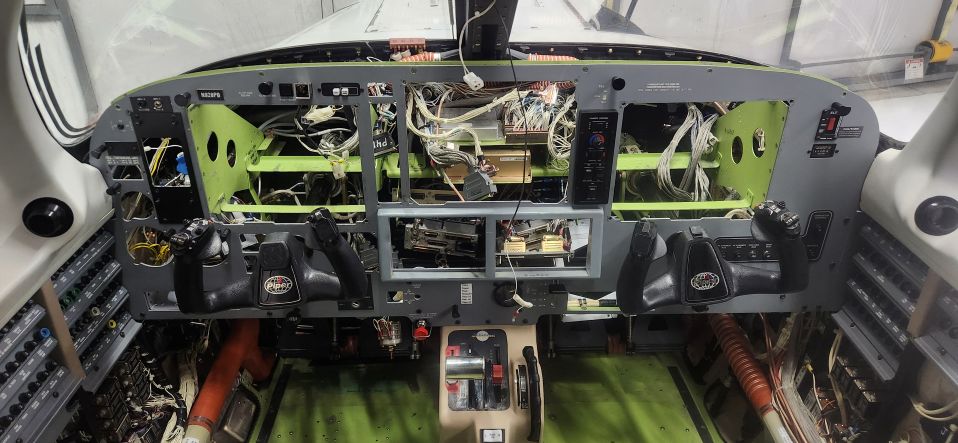

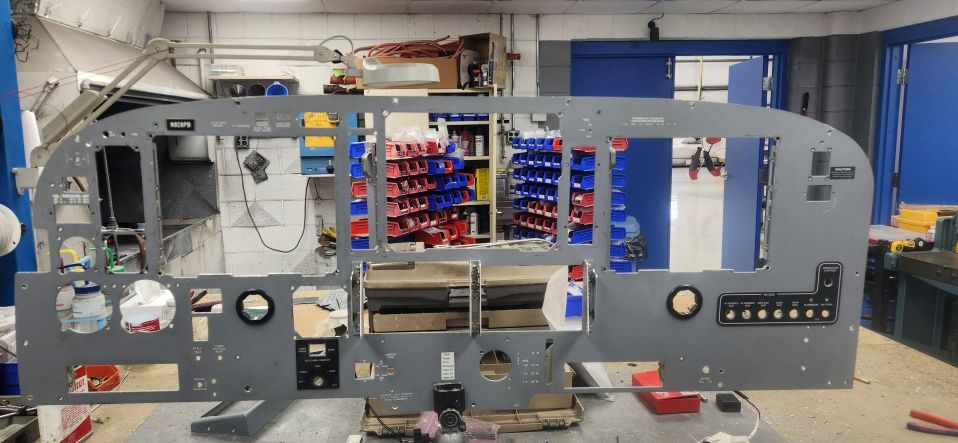

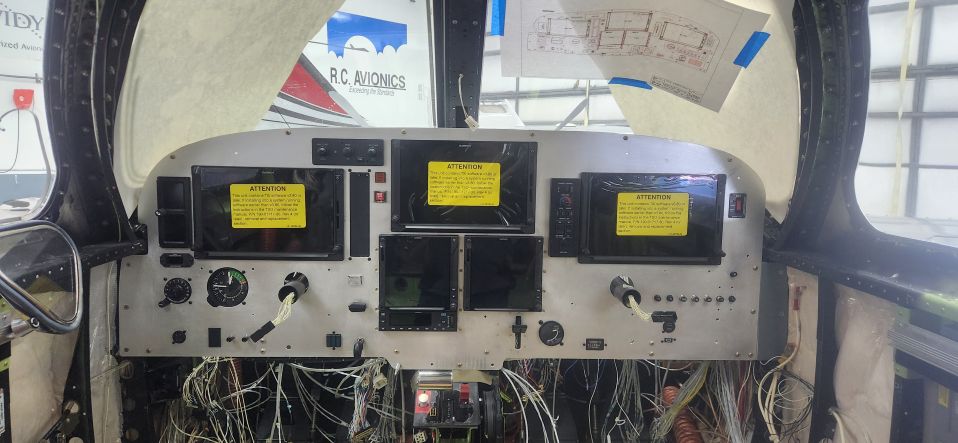

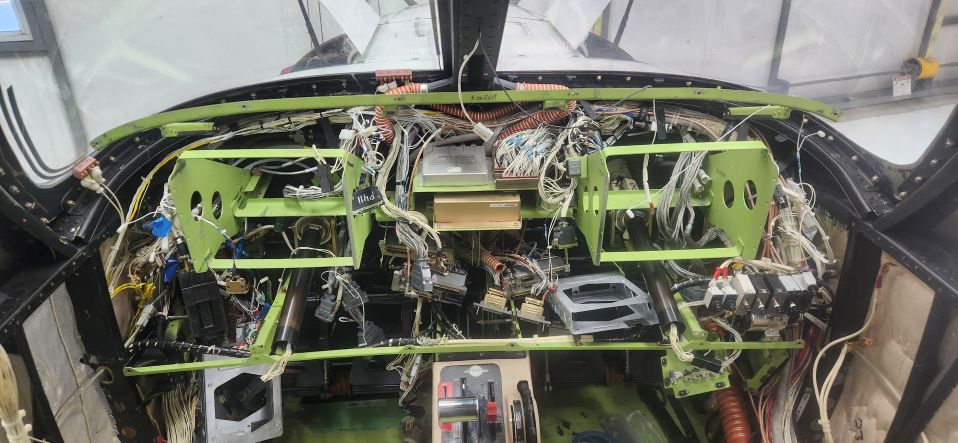

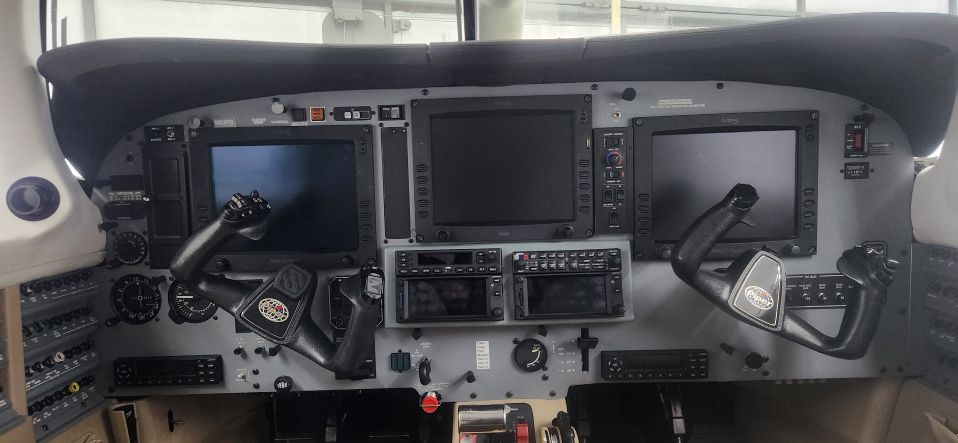

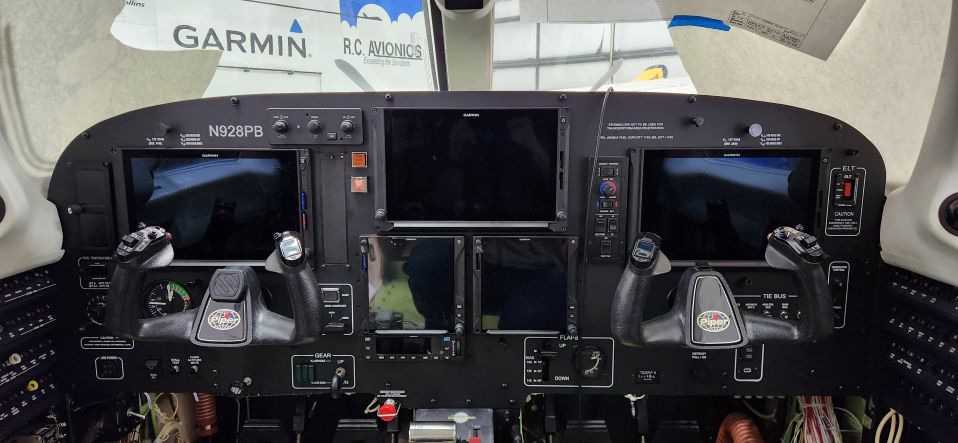

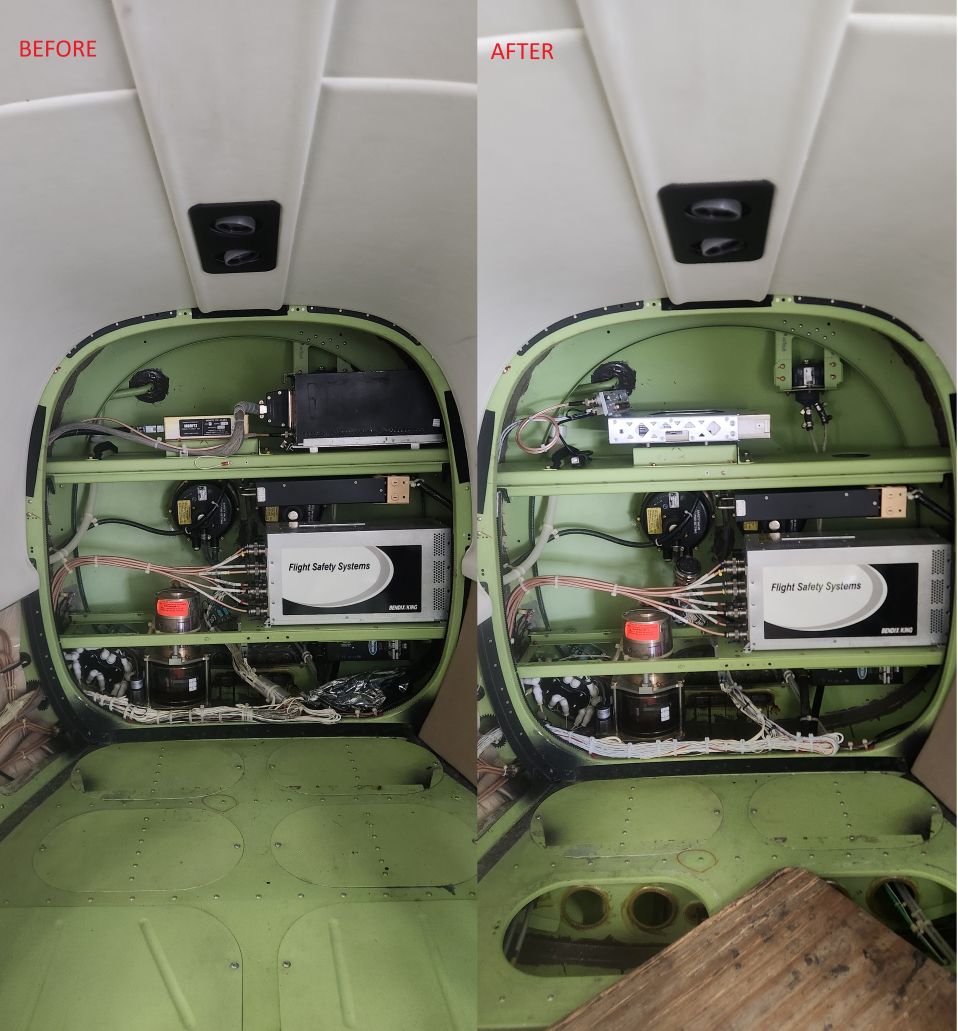

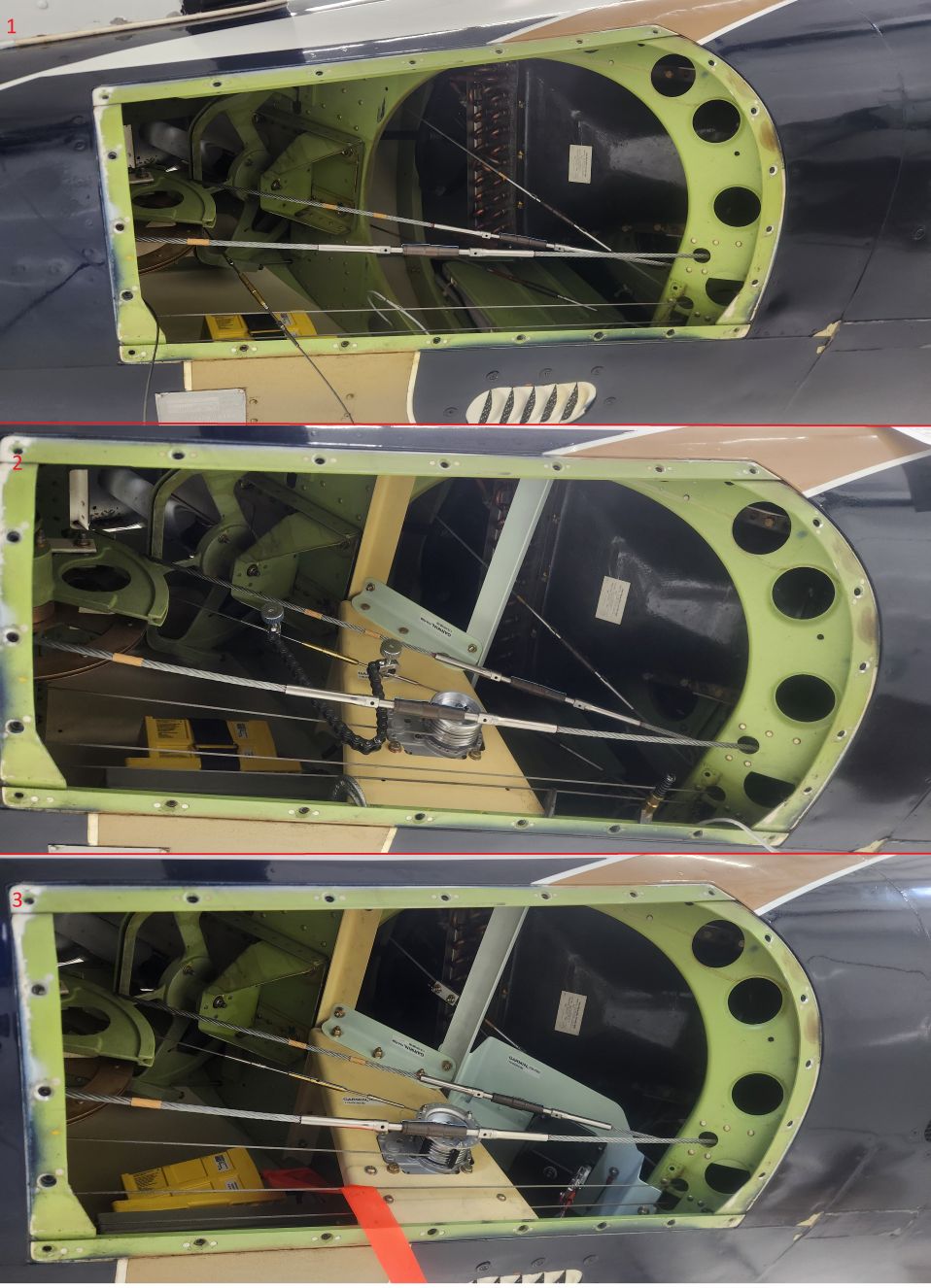

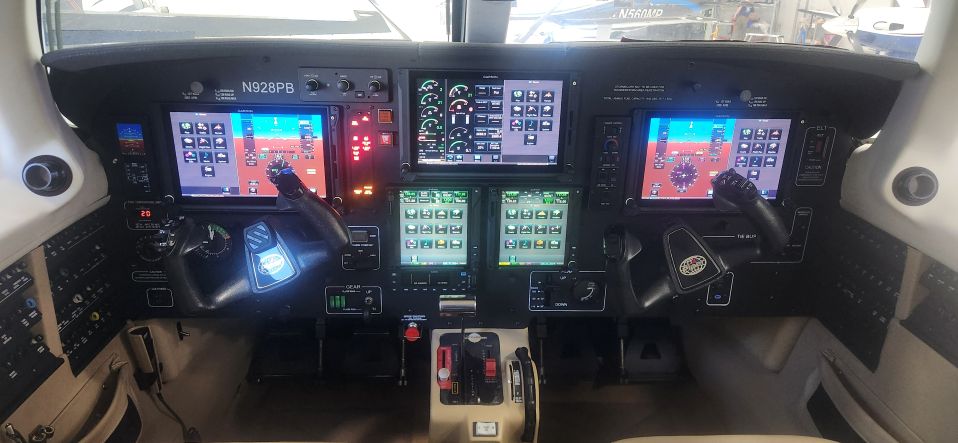

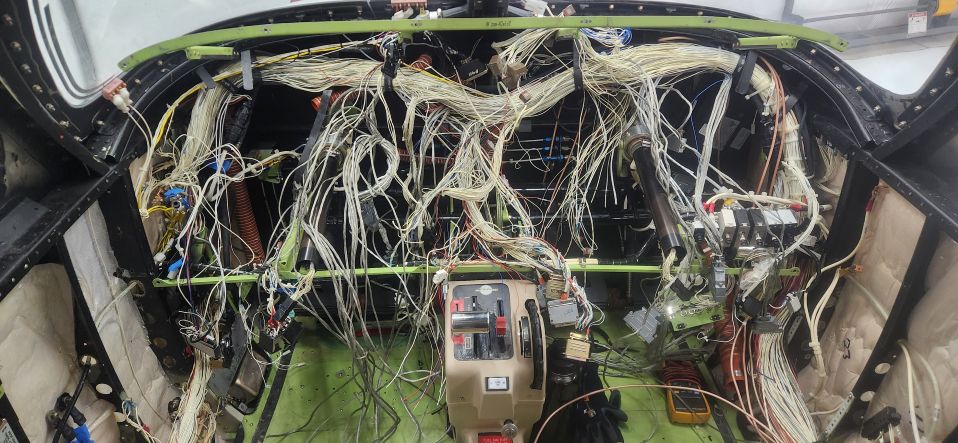

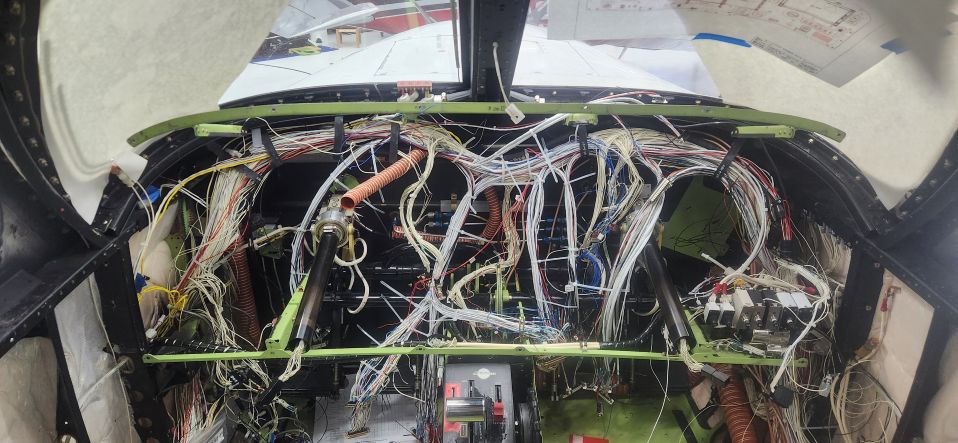

Removed existing Avidyne Flight Deck Installed two GDU-1060 AHRS displays in the Pilots and Copilots panel. One GDU-1060 (Non-AHRS) MFD in center panel. Interfaced system with existing MD-302 pilot standby instrument. The two GTP-59 Temp Probes were mounted. The GMU-44’s were mounted. The GEA-71B EIS was mounted on the lower right copilots fire wall. The GCU-485 controller was mounted in the center of the instrument panel. Integrated with G500 TXi Flight Management System Removed previously installed dual GTN-650s. Installed two new GTN 750Xi units with GMA35(c) integrated into the center radio stack panel. Removed previously installed STEC-3100 Autopilot system. Installed a new Garmin GFC-600C Autopilot system in accordance with above listed manuals and addendums. Autopilot is interfaced to a Triple G500 TXi Flight Management System and Dual GTN Xi Series Navigation systems with enabled Smart Glide feature and added external lighted Smart Glide activation switch. Removed a previously approved installation of a Bendix King RDR-2000 Radar R/T and installed the Garmin GWX-75R R/T. Remove existing instrument panels. Fabricate new One Piece aircraft instrument panel as per original panel to accommodate the removal and addition of new instruments. Reinstall new One Piece aircraft instrument panel.
