N6635D C24R Beechcraft Panel Avionics upgrade.

Installed new, Garmin G3x, Panel Mounted USB Power Port. A Garmin G5 was installed as the required back-up Attitude/Altimeter/Airspeed information. The existing Engine Instruments/CGR-30 were removed and the GEA-24B EIS (Engine Information System) was installed in conjunction with the G3X system. Removed existing S-TEC System 40 and electric trim system.
Installed a new Garmin GFC-500 Autopilot system. Removed and reworked numerous bad wire connections. Relocated GTX-345R to rear avionics shelf due to panel space limitations. Cut hole in original panel to make room for instruments. Install the newly fabricated One Piece panel and paint.

AVIONICS INSTALLATIONS

Before and After

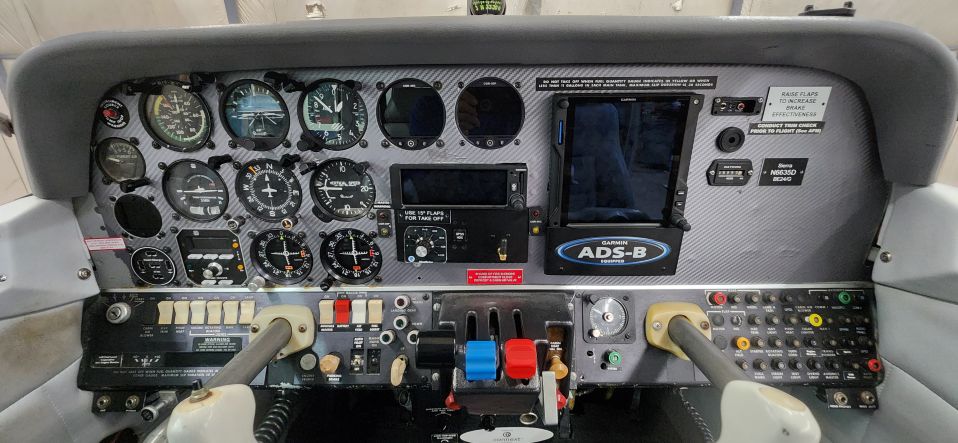

Original panel and instruments.

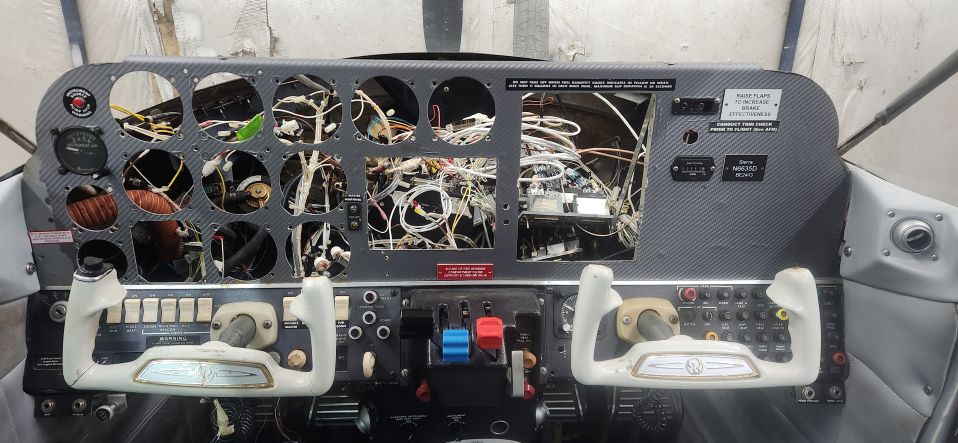

Removed instruments and trays.

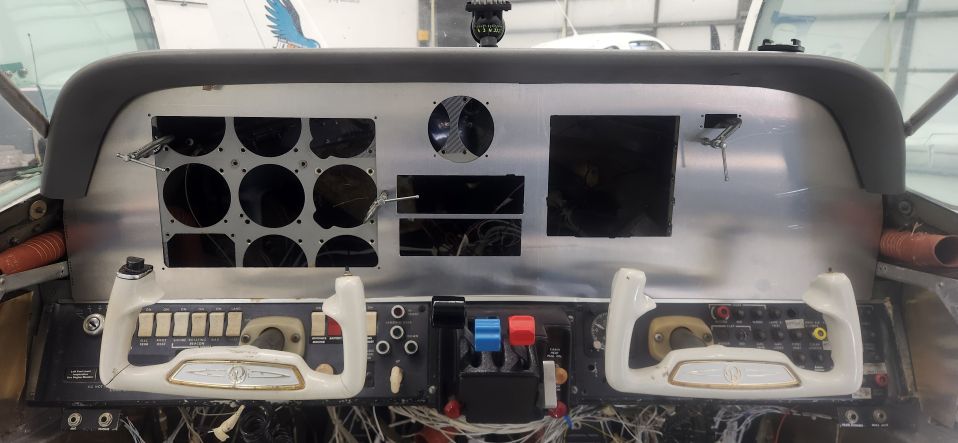

Begin the layout of the panel to mark where the cutting of the old panel needs to be.

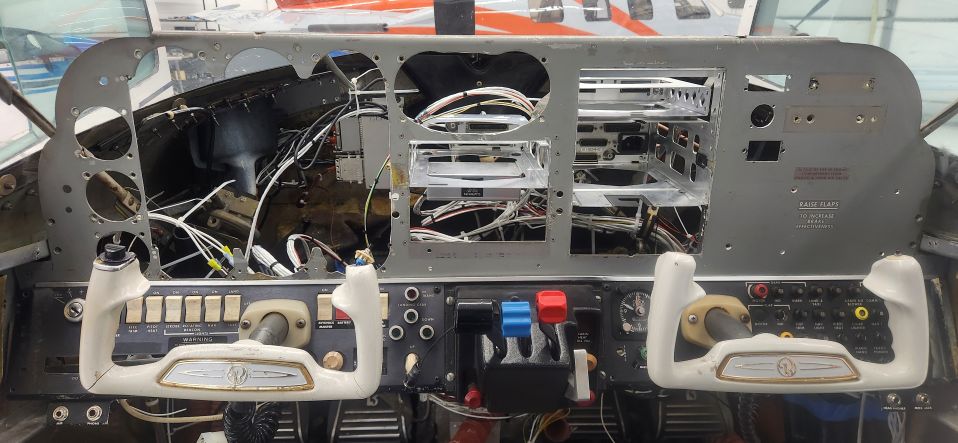

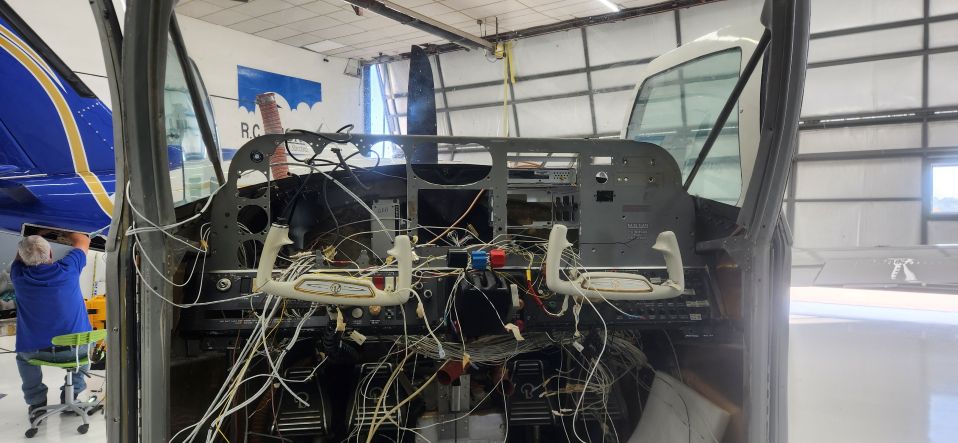

Removing all the old wire no longer needed.

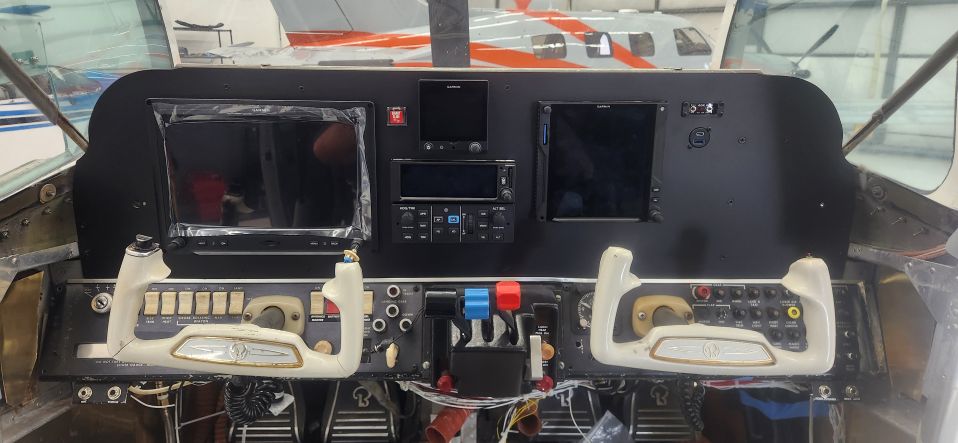

Test Fit the new panel with the G3X, G5, GNC-355, GTN-750Xi and GFC-500.

Finishing the wiring for the new

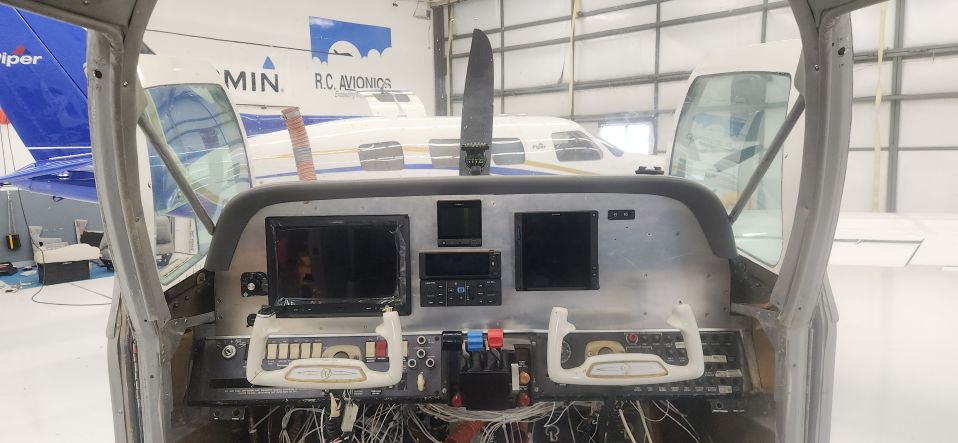

Panel is painted and wiring is nearly finished.

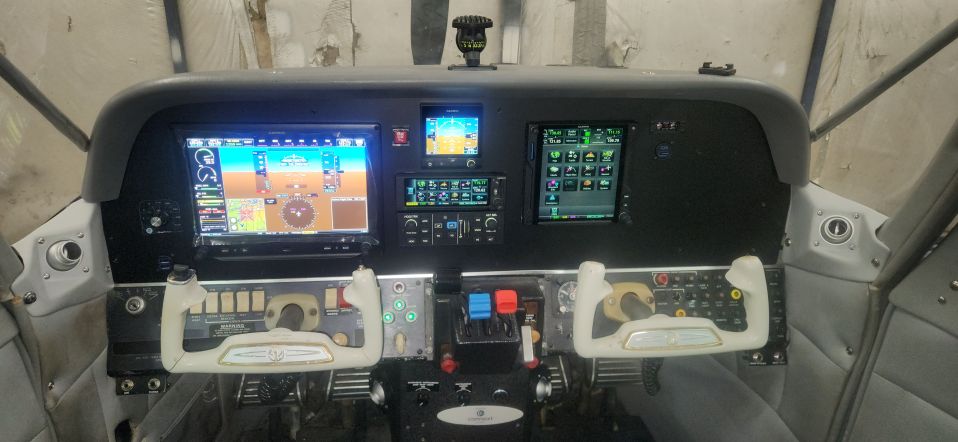

Installation is complete and it is now ready for a test fly!
