N785HC PA46-350P Pilot side panel Avionics upgrade.

Removal and Fabrication of Pilot side panel. Install new G500TXi w/SVT and GI-275 Back-up. Remove GMX-200. Move existing GNS-530W to the right stack and install new GTN-750Xi. Install Garmin EIS Engine Monitoring System and perform Fuel Calibrations. Remove vacuum DG from copilot panel. Replace with GI-275 ADAHRS and GMU-11. Remove one GTX-330ES install new GTX-345 with connection to existing TCAS.

AVIONICS INSTALLATIONS

Before and After

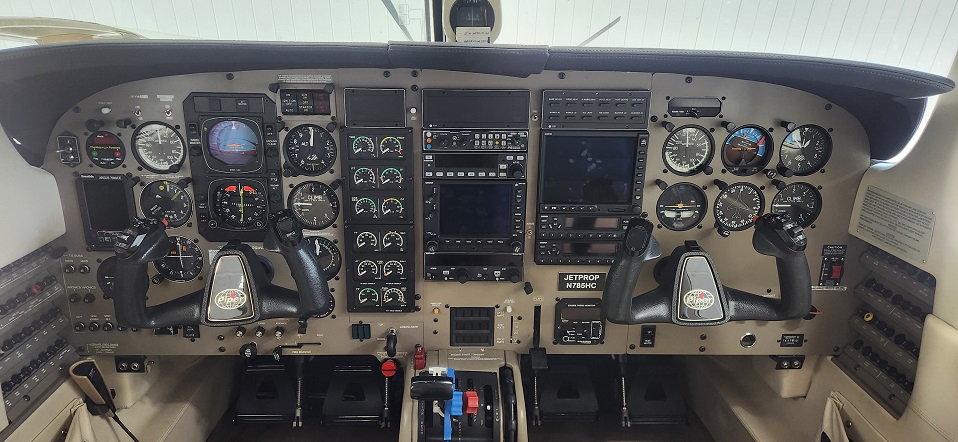

Original panel and instruments.

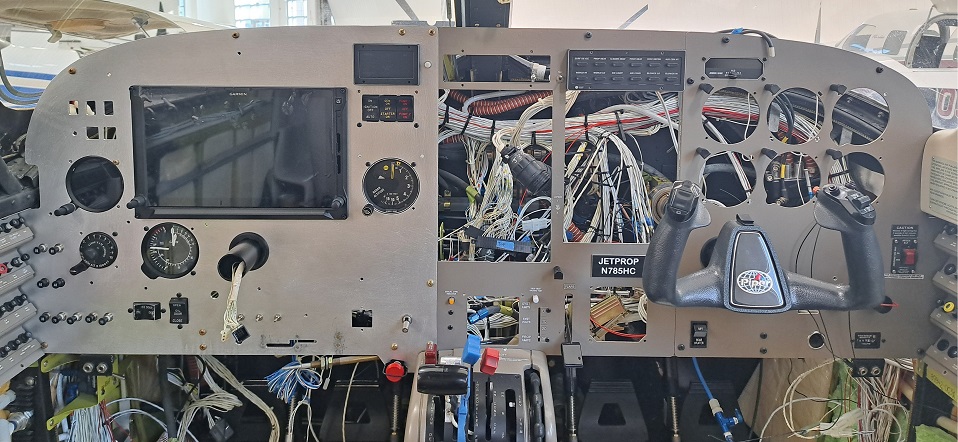

Removal of the instruments.

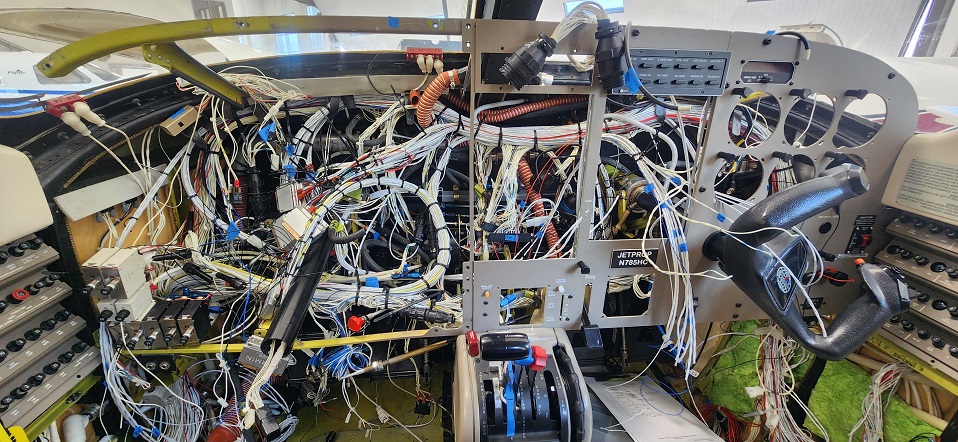

With the old panel and instruments out of the way now we can remove the wire.

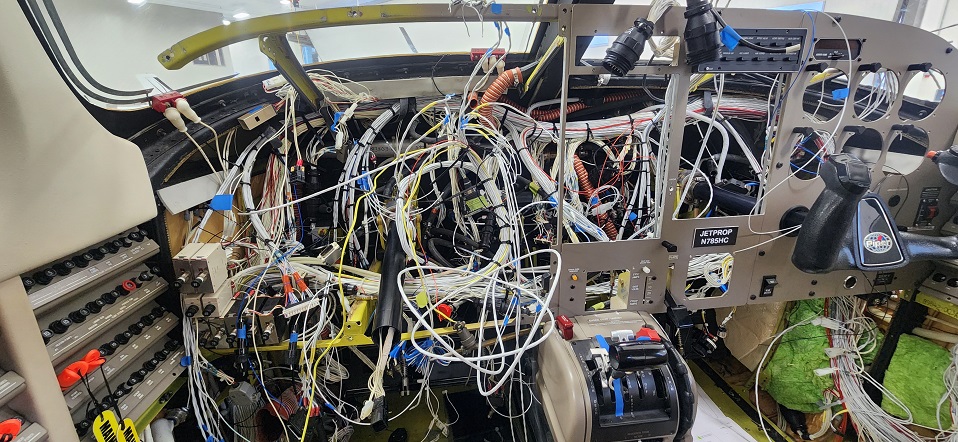

The old wire is out and the new wire is in!

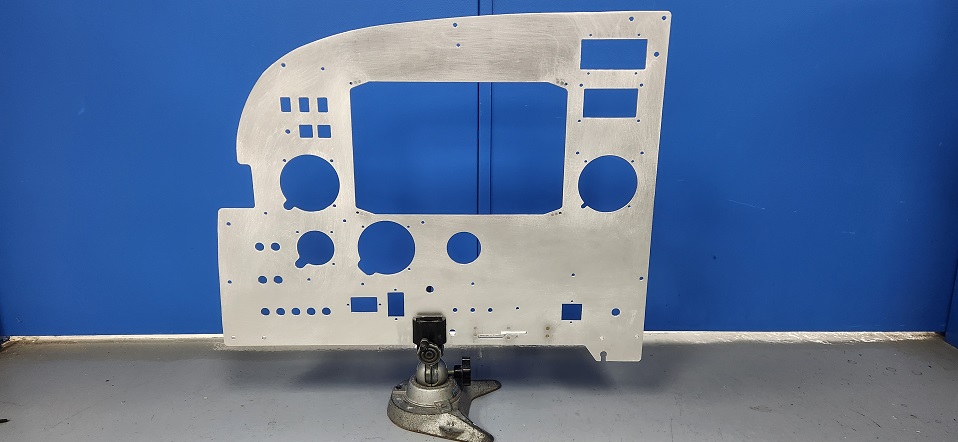

The new panel is cut!

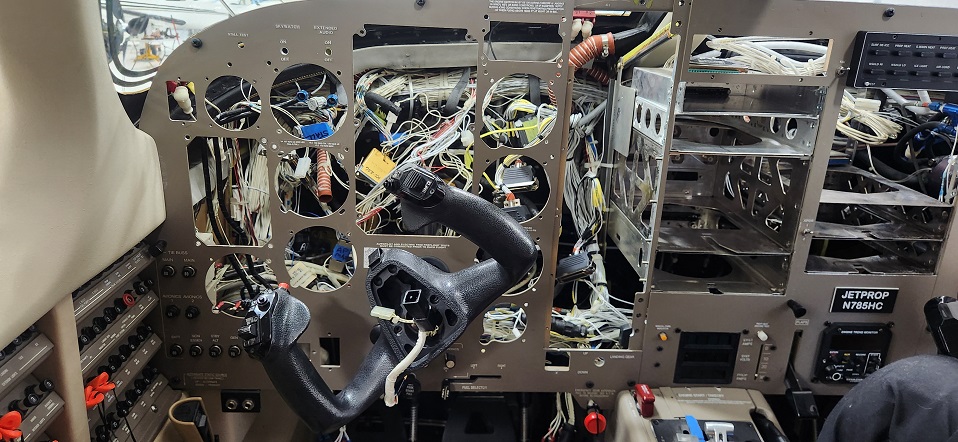

Instrument test fit. Everything fits!

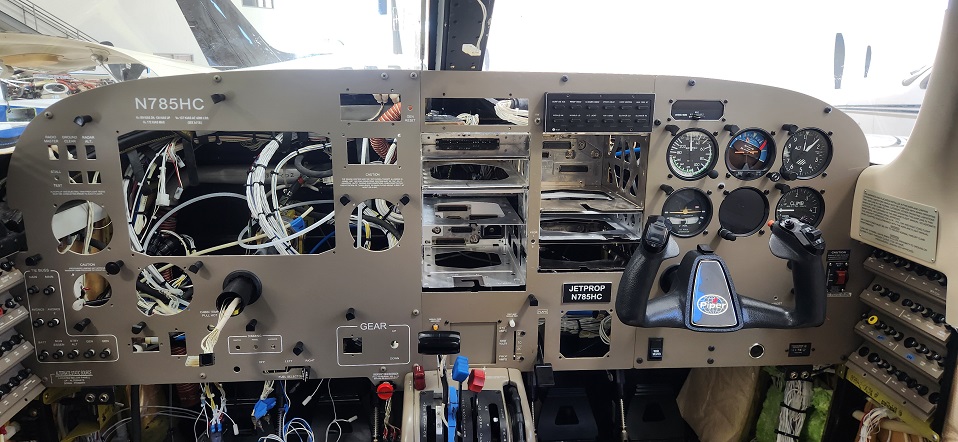

New panel painted and back from the screeners.

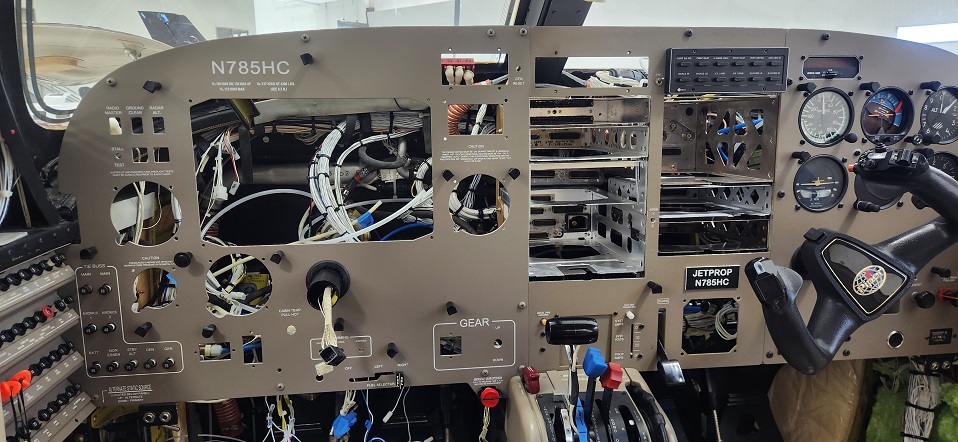

Full panel displayed.

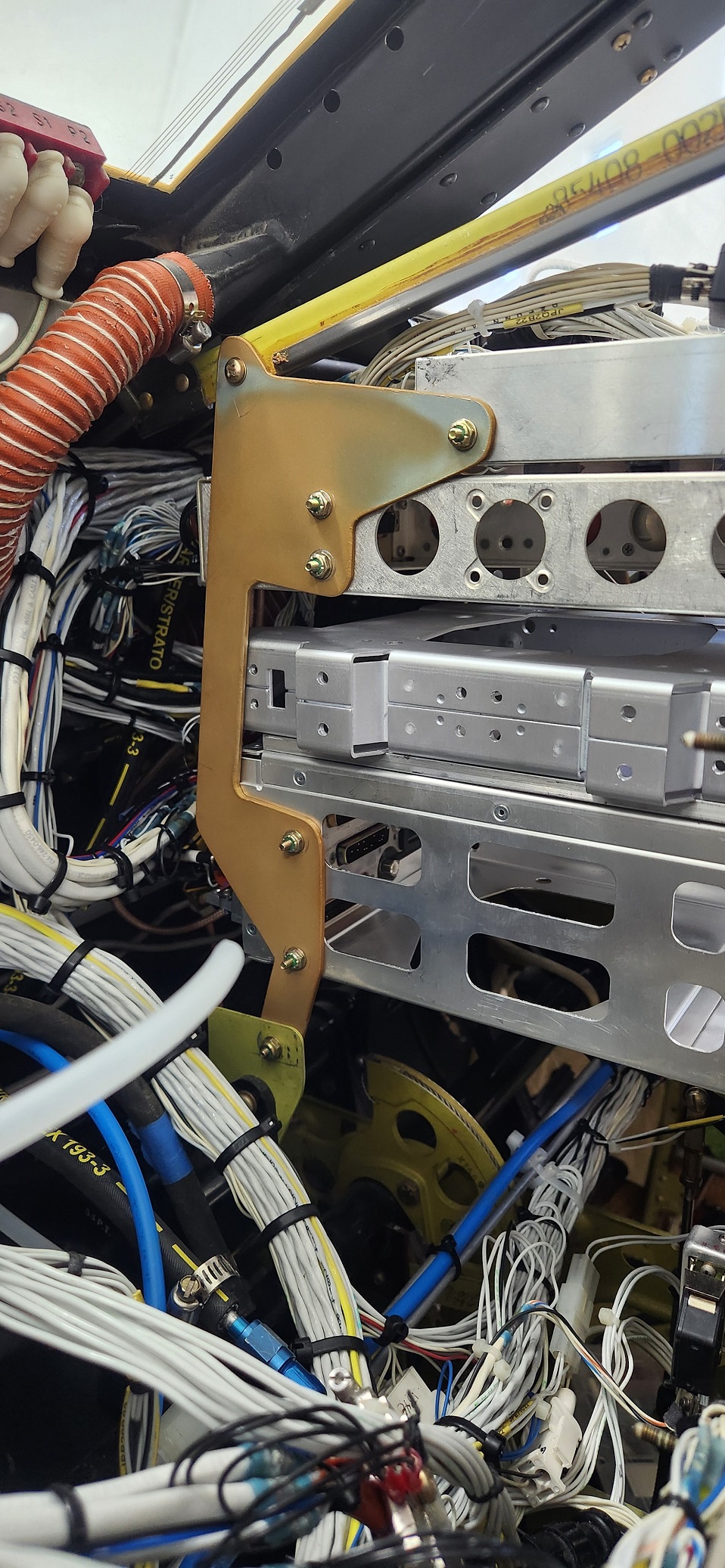

The rear radio rack supports is a Must Have for extra support on those heavy radios.

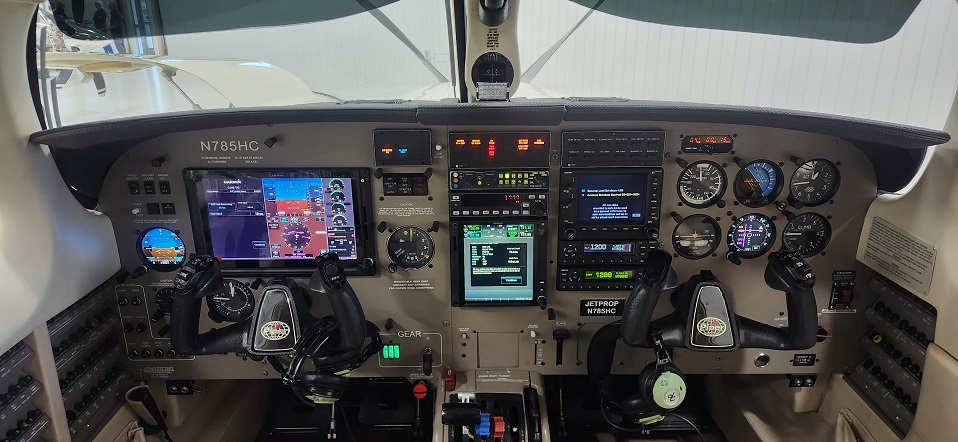

Completed panel.
