N536TP PA46-350P Piper Panel Avionics upgrade.

Installed new, Garmin GDU-1060 TXi on Pilots side, GCU-485 and Dual Lighted Panel Mount USB Power Ports. Installed TXi EIS Engine Information System upgrade. Remove existing GMA-350 and install new GMA-35C. Remove GTN 650. Installed new GTX-750Xi in #1 position and existing GTN750 in #2 position. Removed the existing GTX-345 and installed a new GTX-345R. Removed ART-2000 and install new GWX-8000 Radar. Remove original 3 piece Pilots panel, install the newly fabricated One Piece panel and paint, Re-label/Paint match Circuit Breaker Lighting Strips and paint match Circuit Breaker panels.

AVIONICS INSTALLATIONS

Before and After

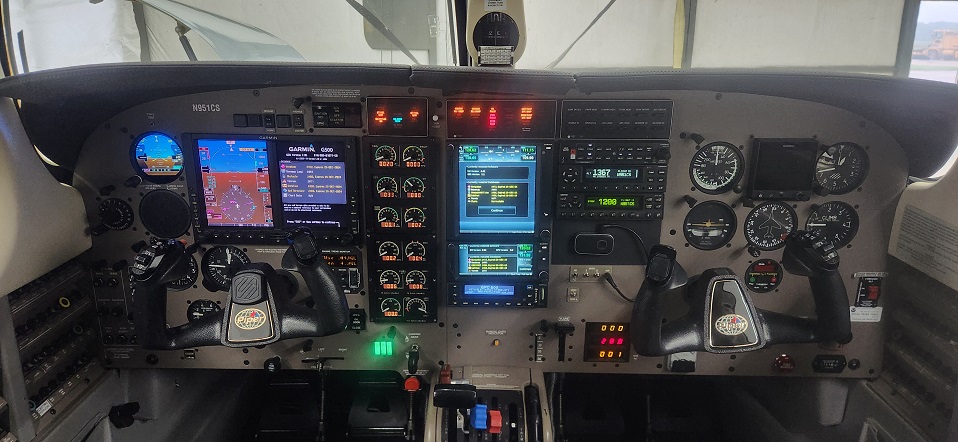

Original panel and instruments.

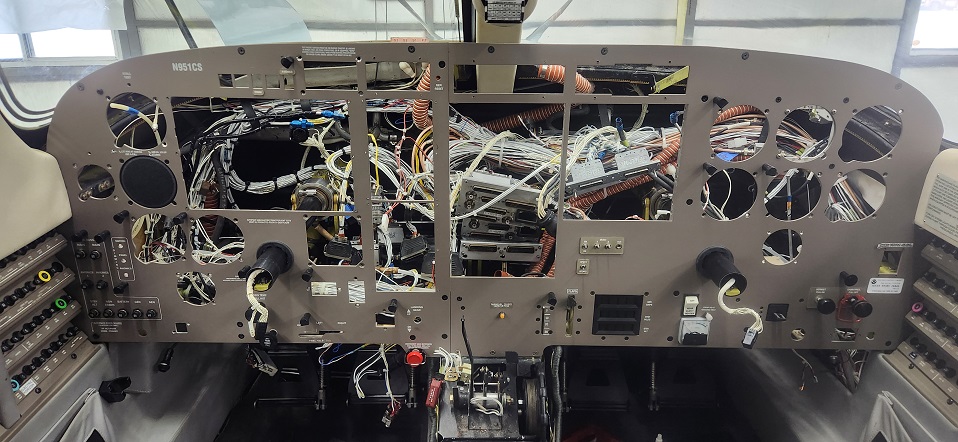

Panel with the removal of all the instruments.

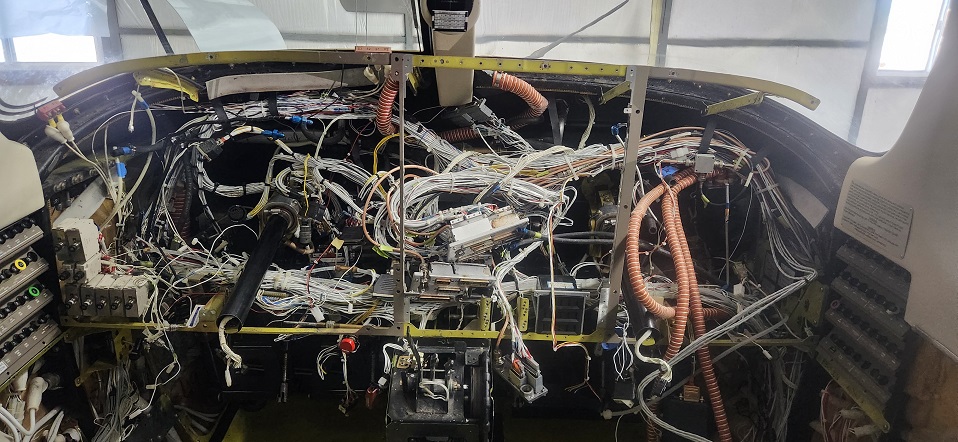

What it looks like behind the panel.

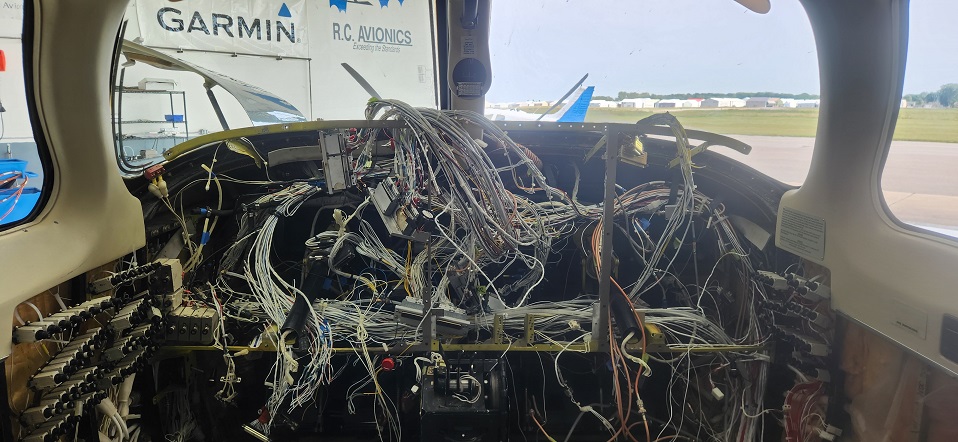

Starting to go through the wiring harnesses to figure out what stays and what goes.

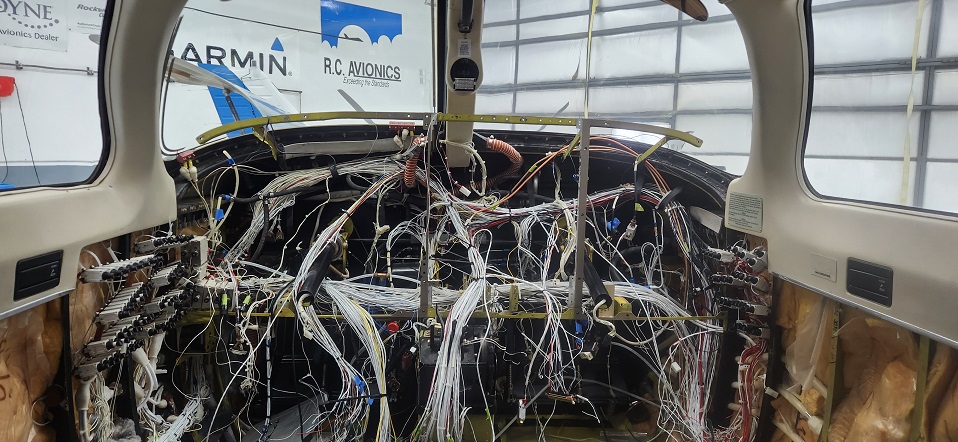

All of the old wire that is no longer needed is out.

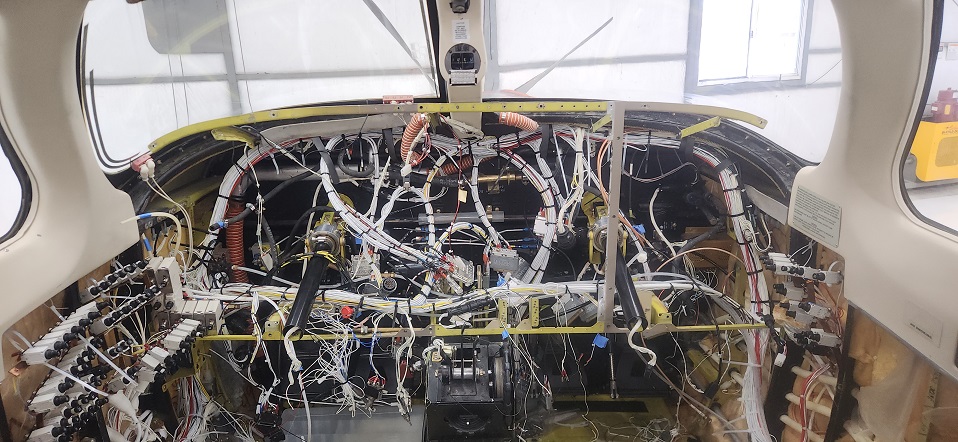

Starting to add in the new wire harnesses.

Creating the proper harness paths.

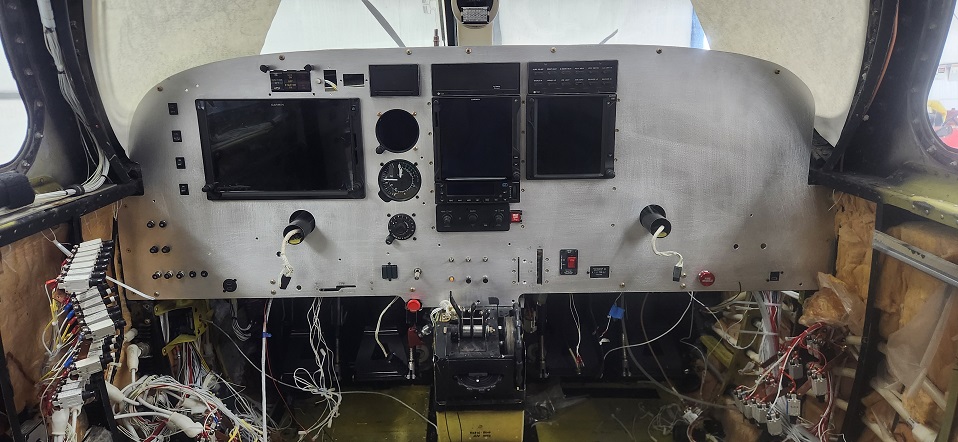

Test fit of the panel

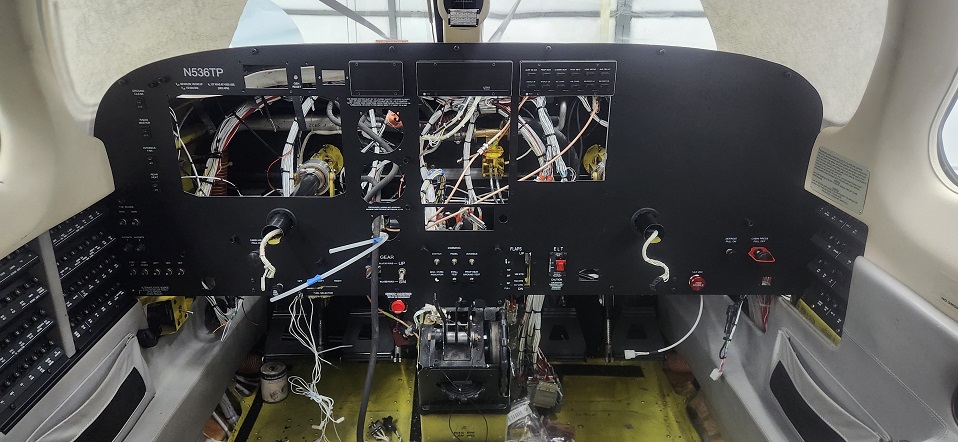

Panel painted, screened and installed.

Radio trays installed along with some of the switches and annunciation units as well.

Full panel and instruments installation completed. Being towed over to Malibu Aerospace for final testing.

All powered up and ready to go!
