N341MC PA46-350P Piper Panel Avionics upgrade.

Installed new, Garmin GDU-1060 TXi on Pilots side, Dual Lighted Panel Mount USB Power Ports. Installed TXi EIS Engine Information System upgrade. Remove IFD 540 and KX165 Installed new GTX-750Xi in #1 position and existing GTN650Xi in #2 position. Removed the existing AXP-340 Transponder and installed a new GTX-345. Remove existing audio panel and intercom. Install new GMA-350c. Install new GFC-600 3 Axis Autopilot system w/Pitch Trim and Yaw (4 Servos). Remove original 3 piece Pilots panel, install the newly fabricated One Piece panel and paint, Re-label/Paint match Circuit Breaker Lighting Strips and paint match Circuit Breaker panels.

AVIONICS INSTALLATIONS

Before and After

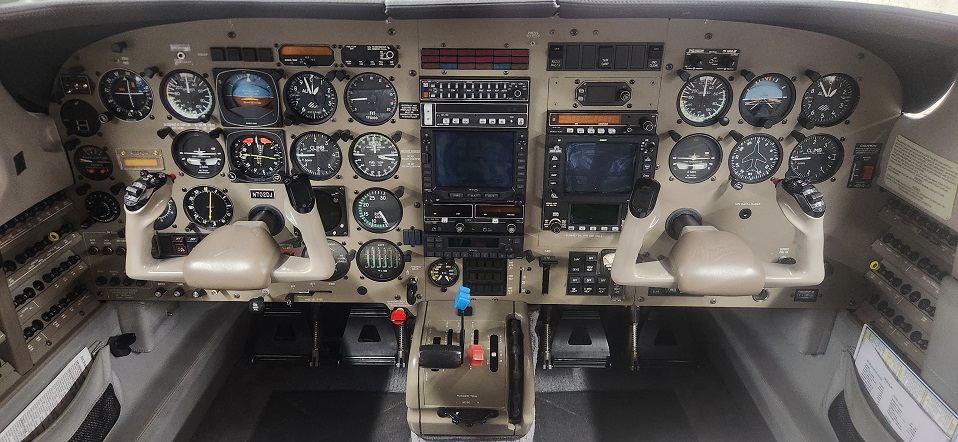

Original panel and instruments.

Instruments being removed to gain access behind the panel.

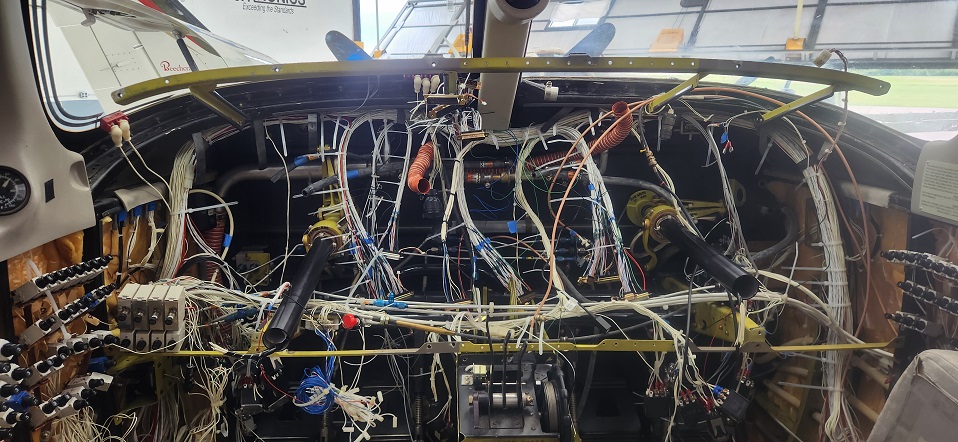

Access behind the panel with most of the no longer needed wire removed.

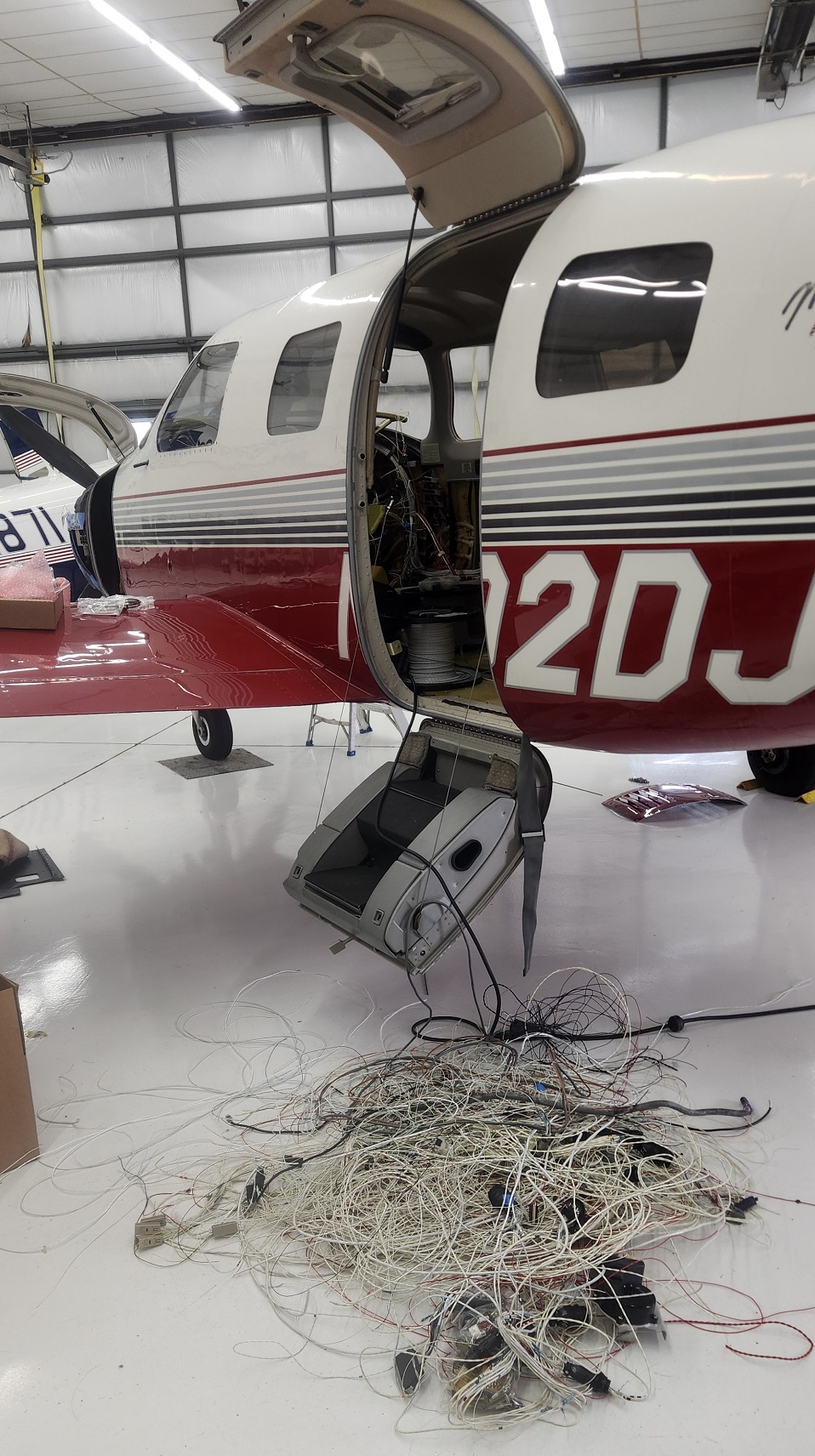

The total amount of wire that has been removed!

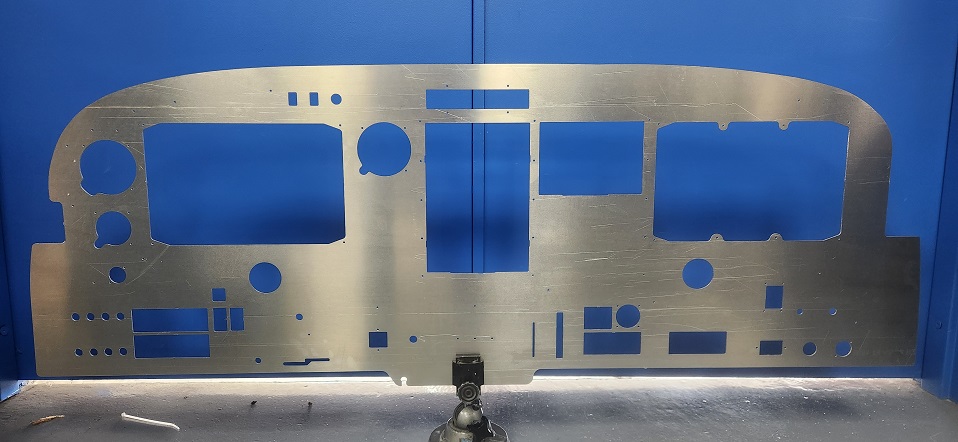

New One Piece panel ready for a test fit.

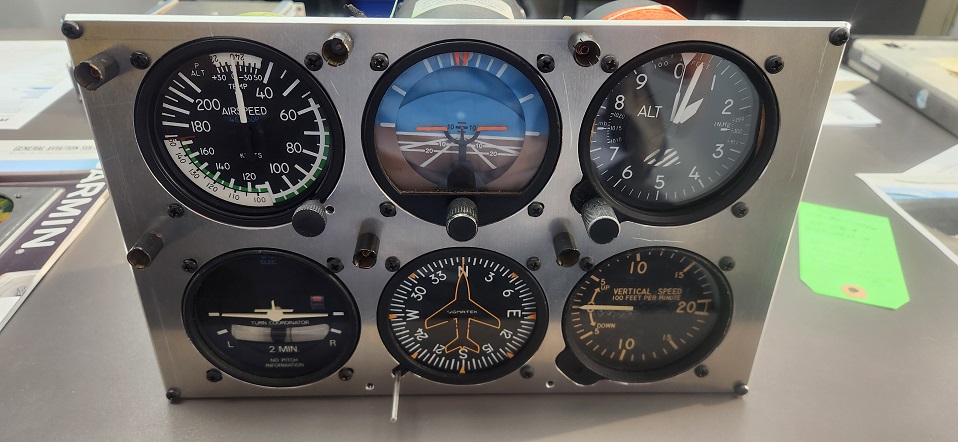

The Six pack is removable on the co-pilot side ease of access and future upgrades.

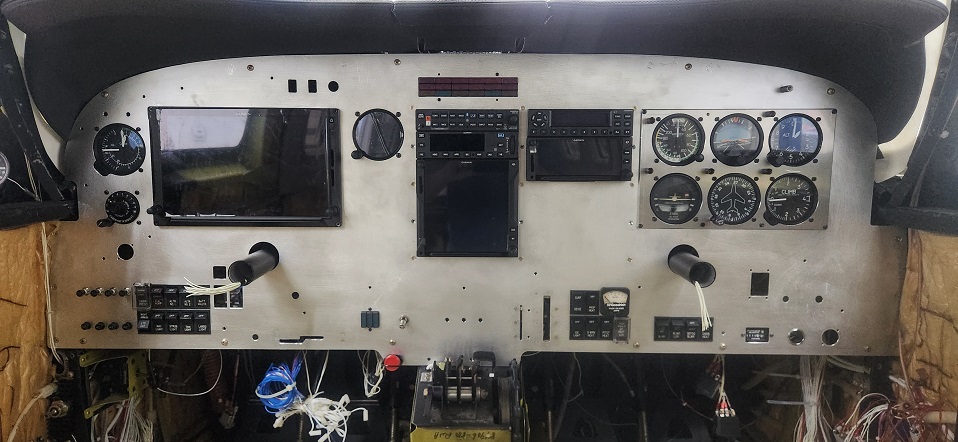

Test fit of the new panel.

The Wiring harness is almost complete and connectors are getting closed out.

Painted the Yokes to match the panel.

A power up test and configuration of everything.

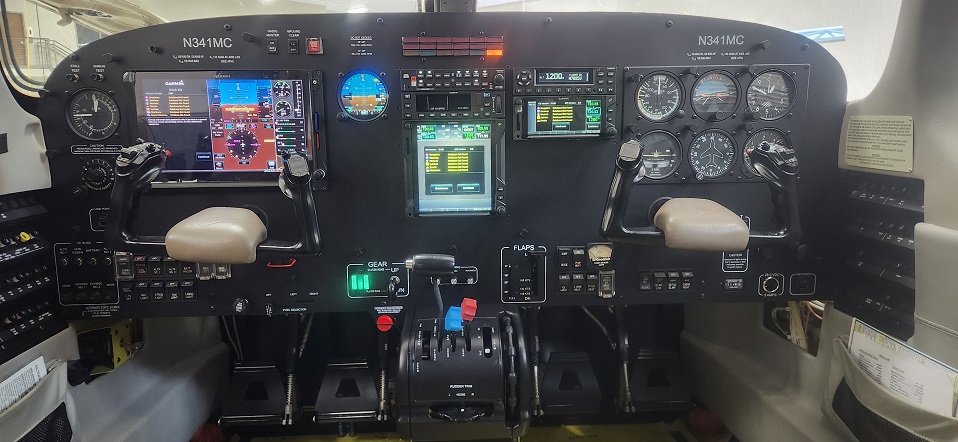

Final panel ready for test flight.
