AVIONICS INSTALLATIONS

Portfolio

Before and After

22cx_0-web

Original panel and instruments.

22cx_1-web

Removal of all of the instruments.

22cx_2-web

Removed the panel and now we can begin to remove the wire .

22cx_3-web

The old wire is out and the new wire is in!

22cx_4-web

The new panel is cut!

22cx_5-web

First instrument test fist.

22cx_6-web

Wiring harnesses are starting to be closed out.

22cx_7-web

Test fitting the panel.

22cx_8-web

Making sure everything fits.

22cx_9-web

Primer coat of panel.

22cx_10-web

Colored and screened panel back in the aircraft.

22cx_11-web

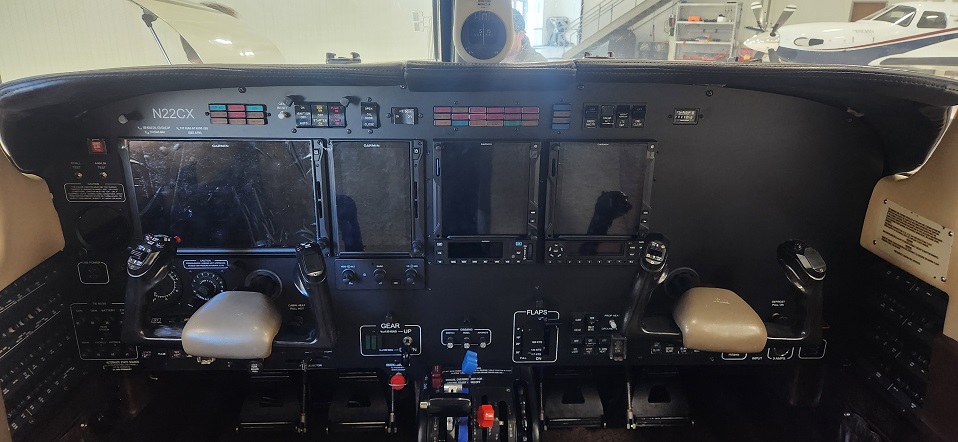

The Finished Install!

22cx_12-web

Power ON!

22cx_13-web

N22CX Piper PA46-350P Panel and Avionics upgrade.

Remove original 3 piece Pilots panel, install the newly fabricated One Piece panel and paint, Re-label/Paint match Circuit Breaker Lighting Strips and paint match Circuit Breaker panels. Remove existing Legacy G500. Install new Garmin GDU-1060 TXi W/EIS and GI275 as standby on Pilots side. Also requests GDU700P for engine display. Remove existing GNS530W/430W transponders and audio panel. Install new GTN750Xi/650Xi. Install new GFC-600 3 Axis Autopilot system w/Pitch Trim and Yaw (4 Servos). Added GCU 485.
