N117PW Piper PA46-500TP Avionics Upgrade

Install Dual Garmin G500 TXi’s w/GI-275 Backup, keeping existing PMA-8000 Audio Panel, Dual GNS-530W Navigators, GTX-345/330ES Transponders, GDL-69A and 1500 WAAS upgraded autopilot. Install new Garmin EIS system. Remove ART-2000 and install new GWX-8000. Install STEC-3100 autopilot upgrade system. Remove original 3 piece Pilots panel, install the newly fabricated One Piece panel and paint, Re-label/Paint match Circuit Breaker Strips and paint match Circuit Breaker panels/Center Pedestal.

AVIONICS INSTALLATIONS

Before and After

Original panel and instruments.

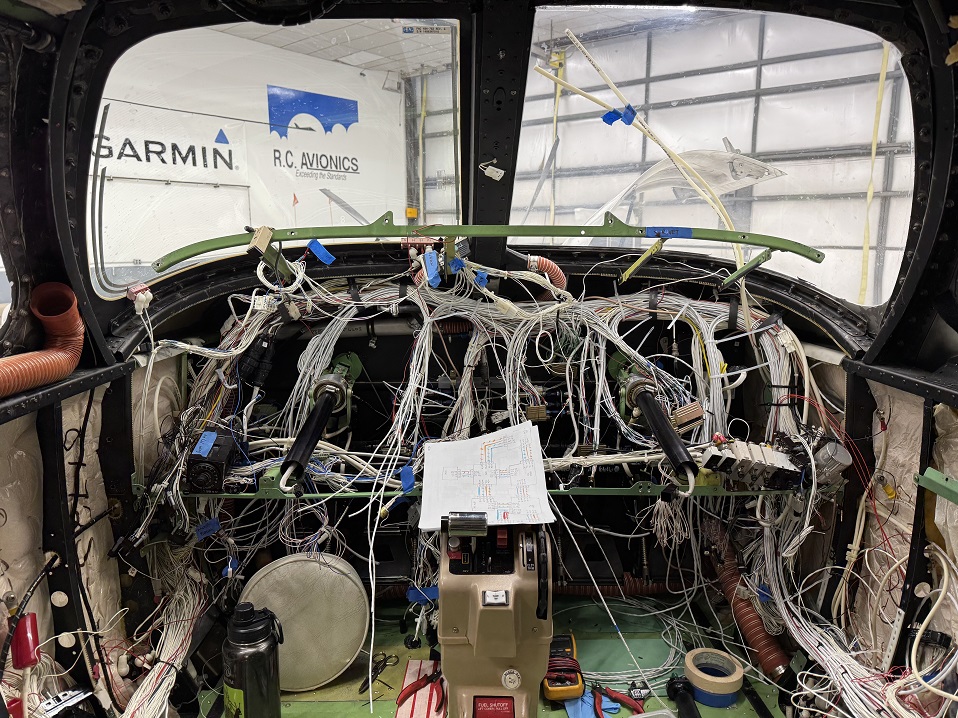

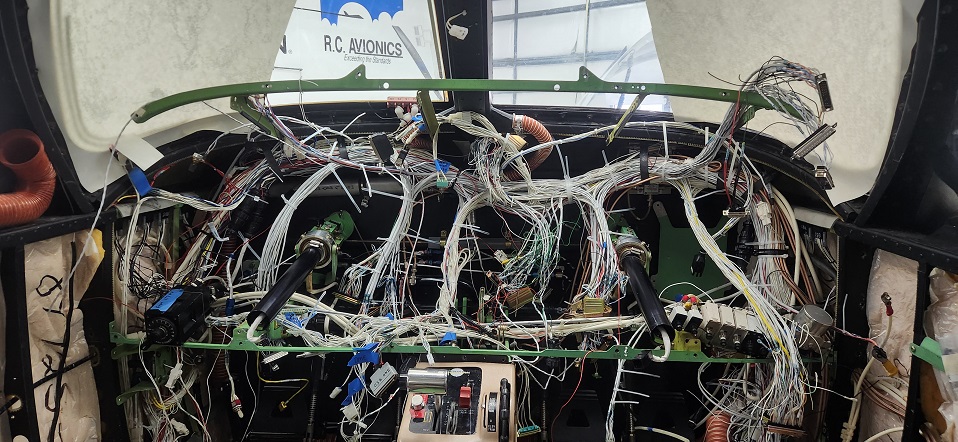

The mess of harnesses behind the panel.

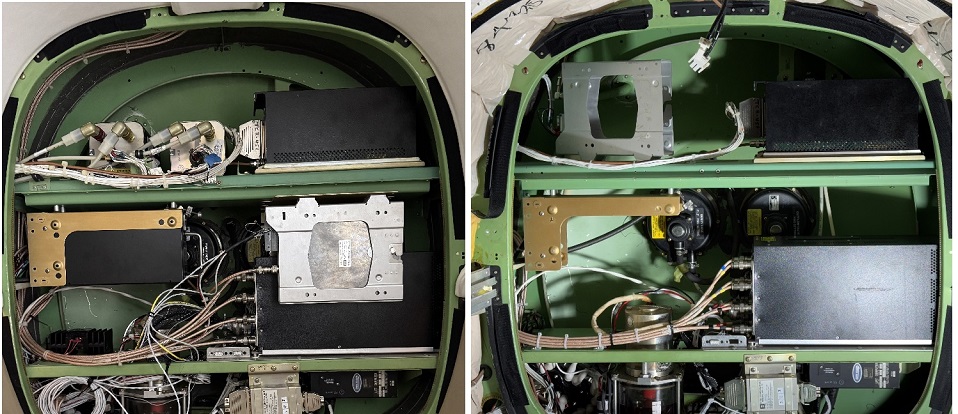

Before and after of the back Avionics shelf.

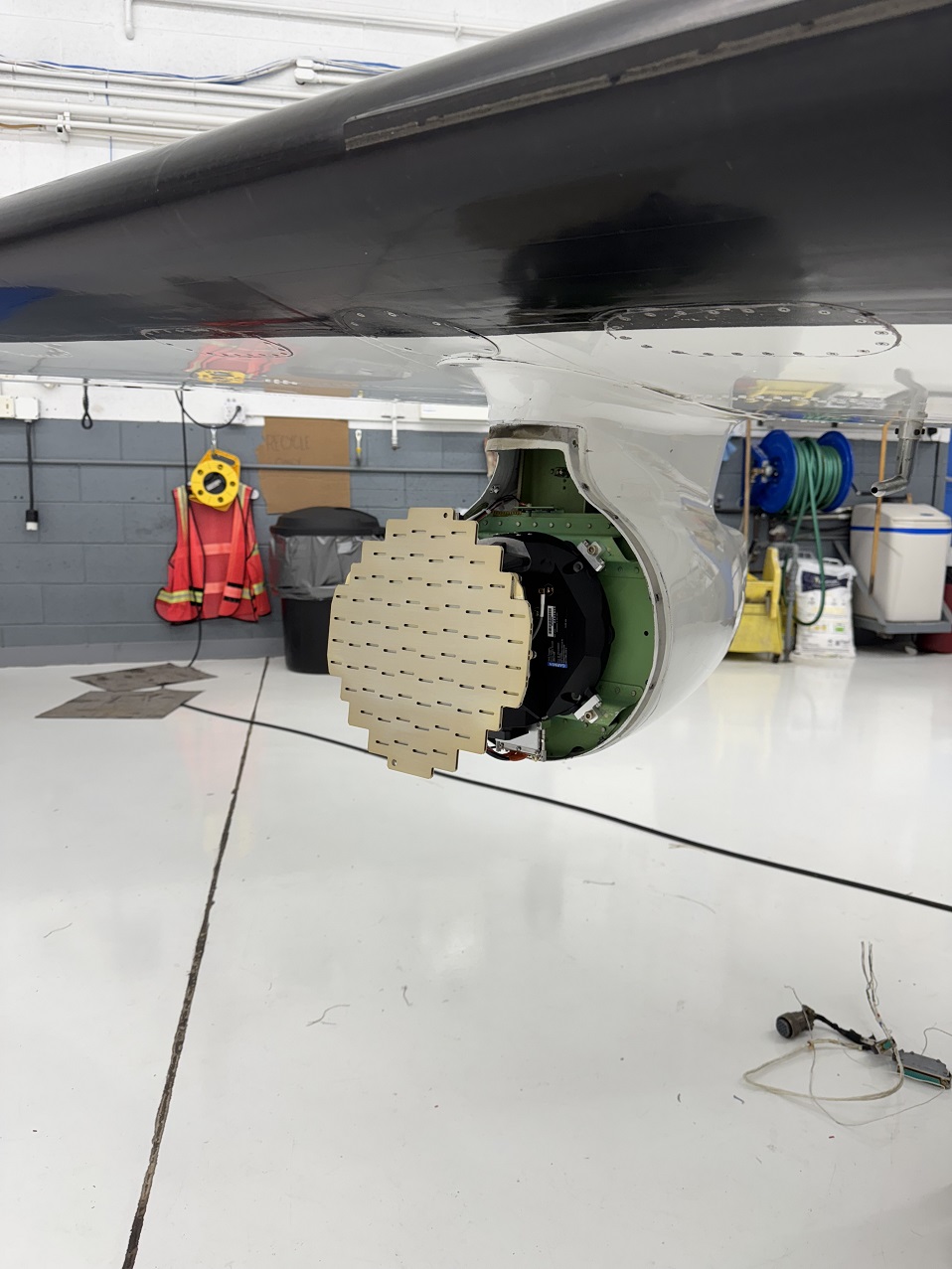

Removed the old ART-2000 radar and replaced it with a New Garmin GWX-8000!

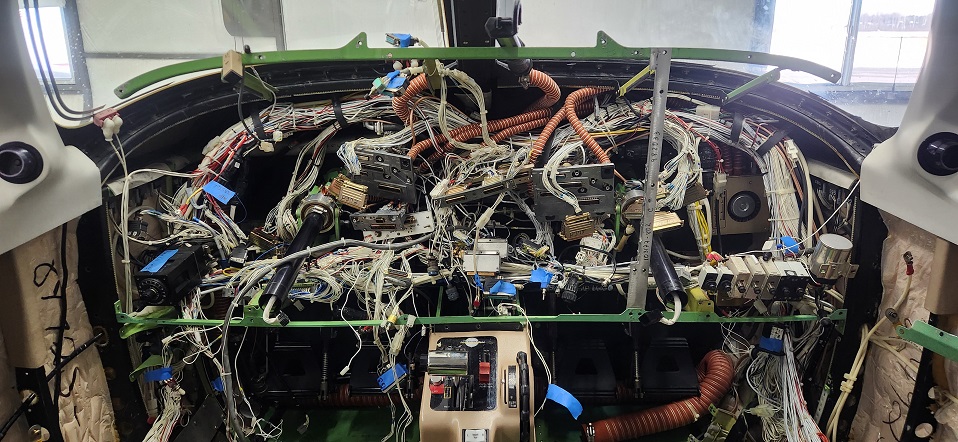

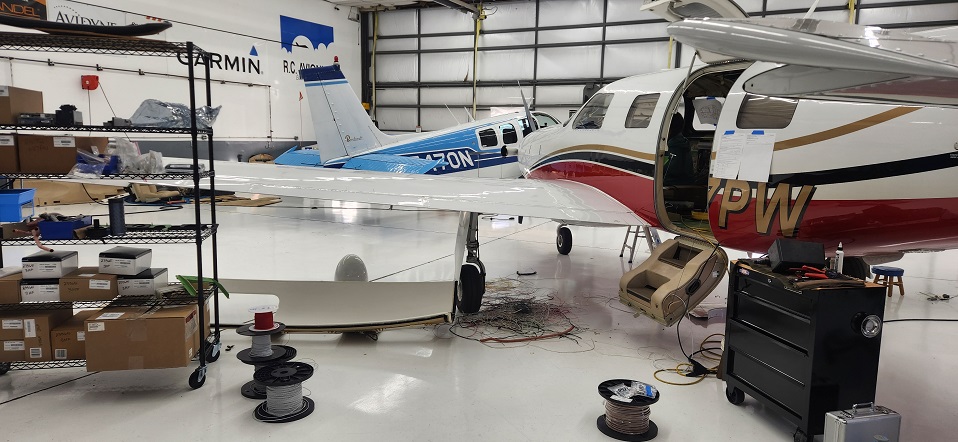

The pile of pulled wire harness starting to accumulate outside the aircraft.

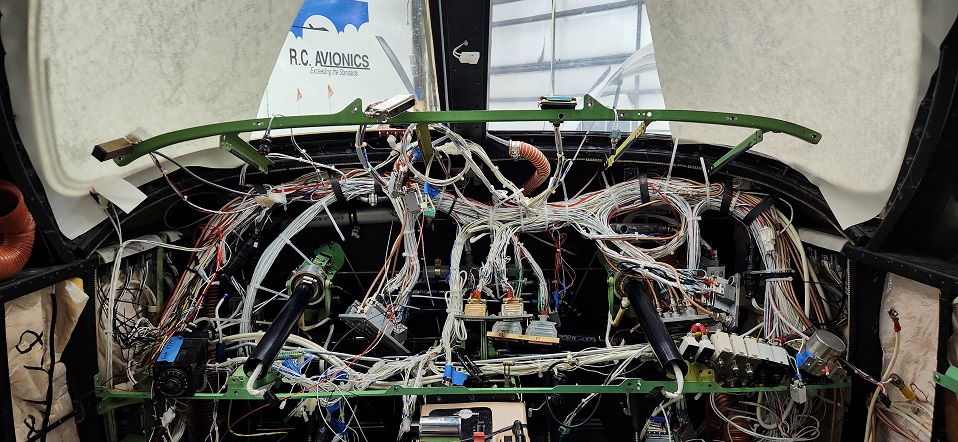

New harnesses are starting to form.

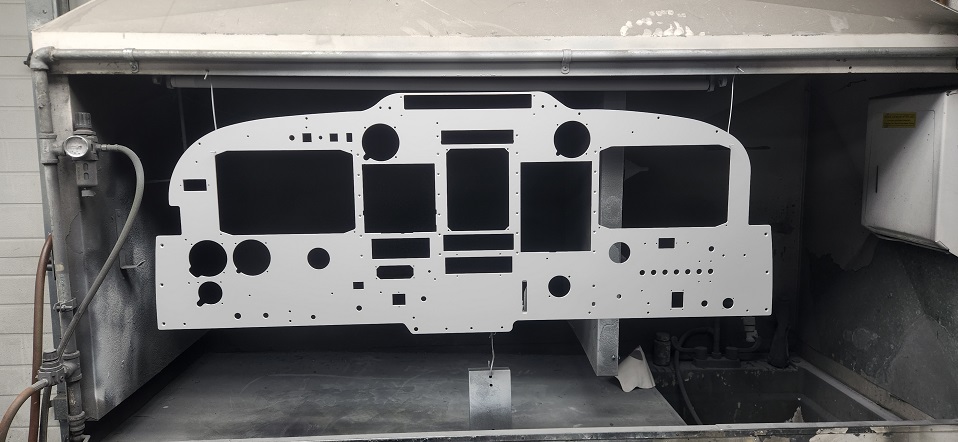

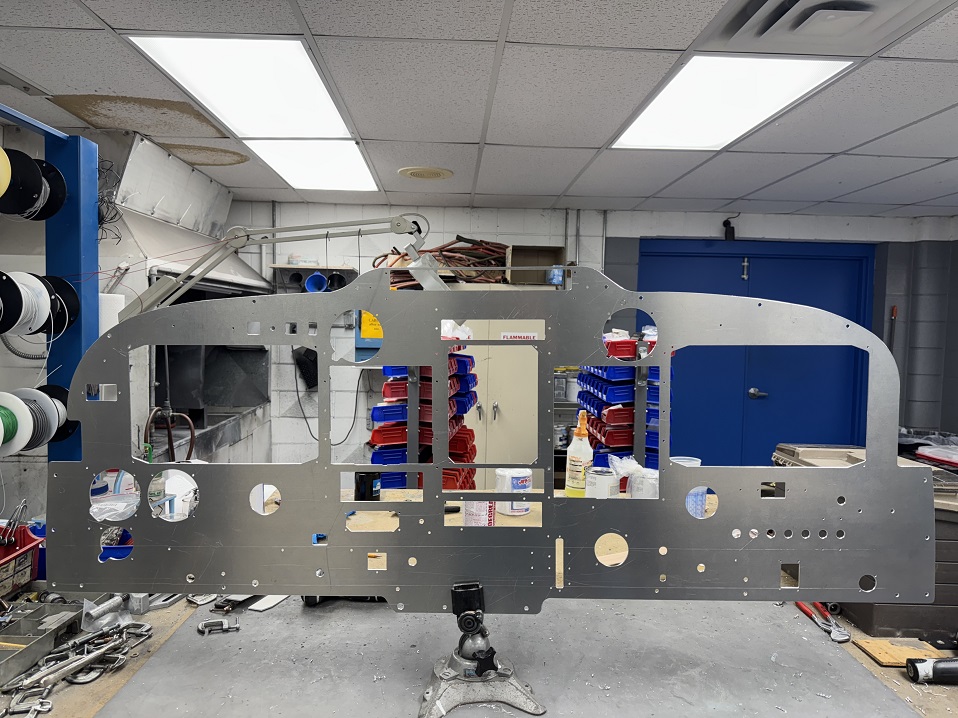

The Cut panel.

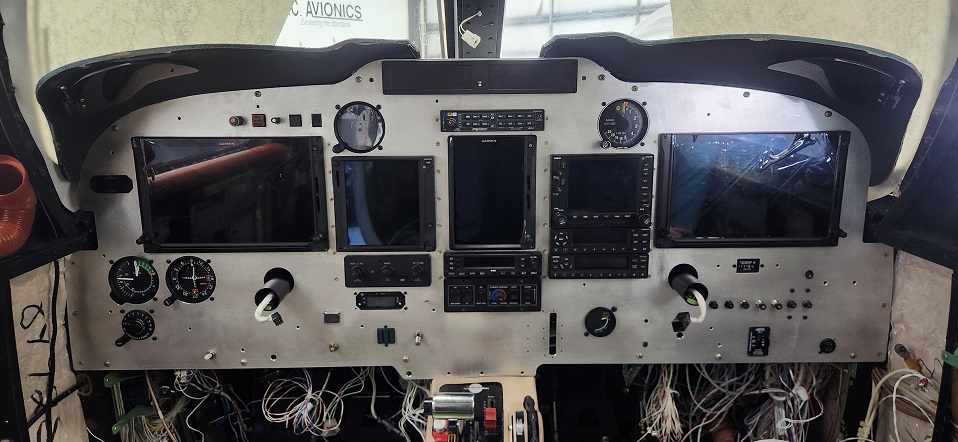

Test fitting the panel.

Getting closer to finishing the harnesses.

Panel is painted and ready for screening.

Harnesses are made and ready to be tested.

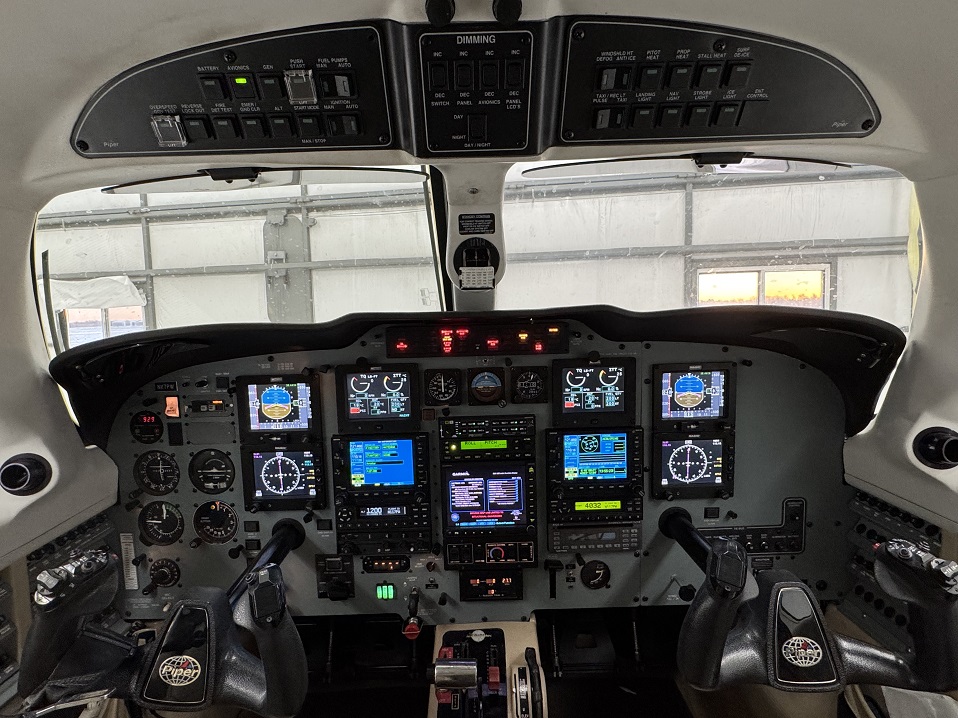

The finished panel with all Avionics powered on.

N117PW Piper PA46-500TP Avionics Upgrade
